SPECIFICATIONS
Allowable operating frequency: Machinery:max 120 times/min Machinery:min 20 times/min
Allowable operating speed: 0.5mm-1m/s
Ambient temperature: -45 to 80℃
Anti-vibration: 10-55Hz 1.5mm double vibration radiation
Brand Name: NONE
Certification: RoHS,CE
Contact resistance: 25m ohms
Current: 16a

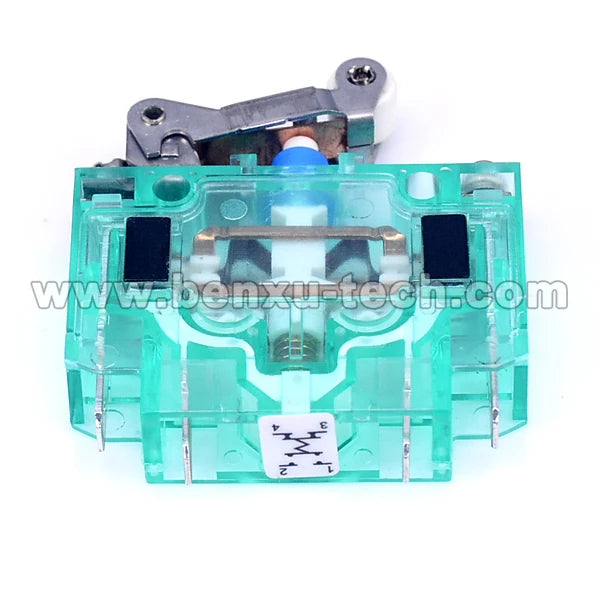

Features: NO+NC Contacts
High-concerned chemical: None
Insulation resistance: 100m ohms(AC4000V)
Item Type: SWITCHES
Material: Plastic,Polycarbon

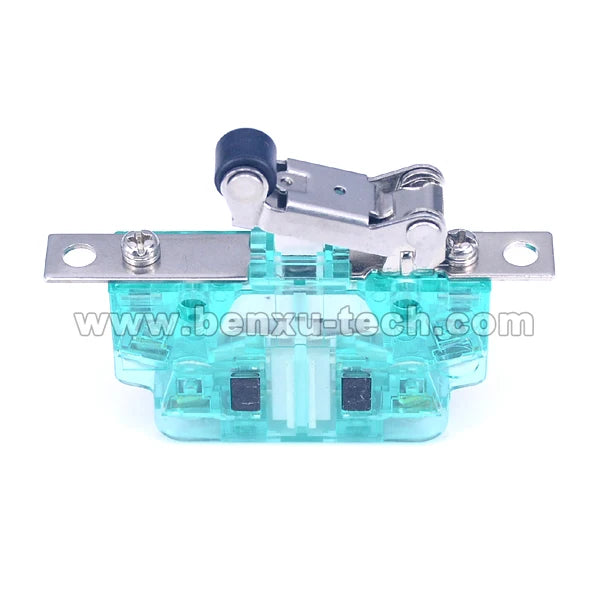

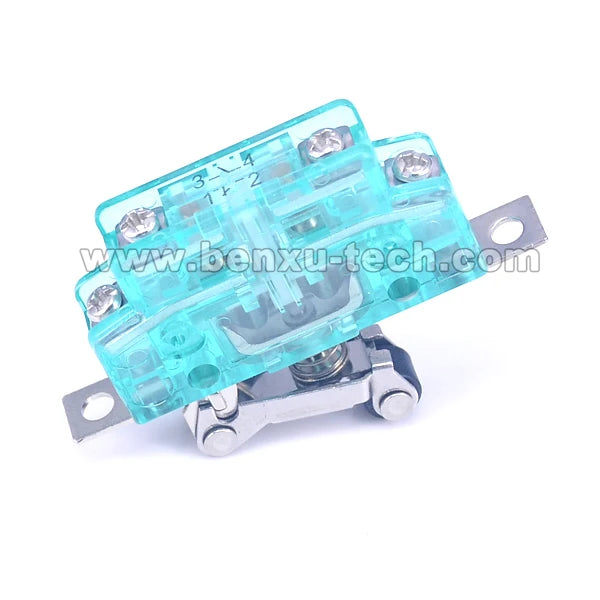

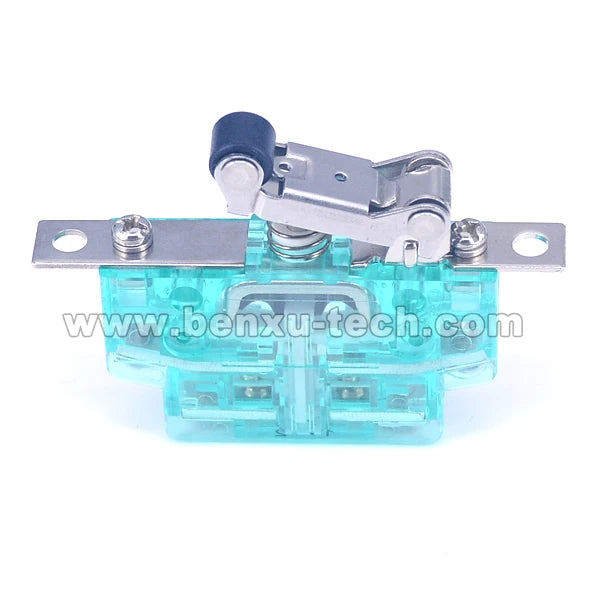

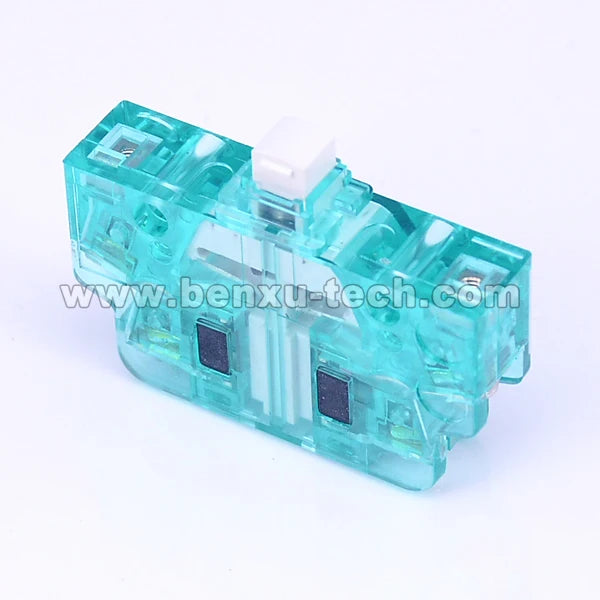

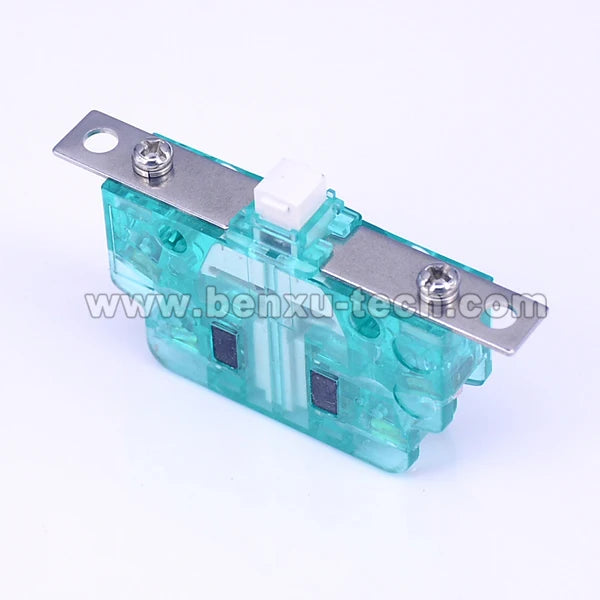

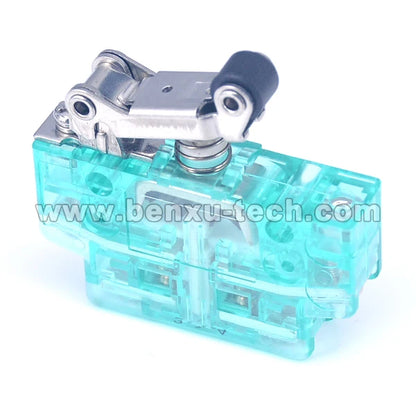

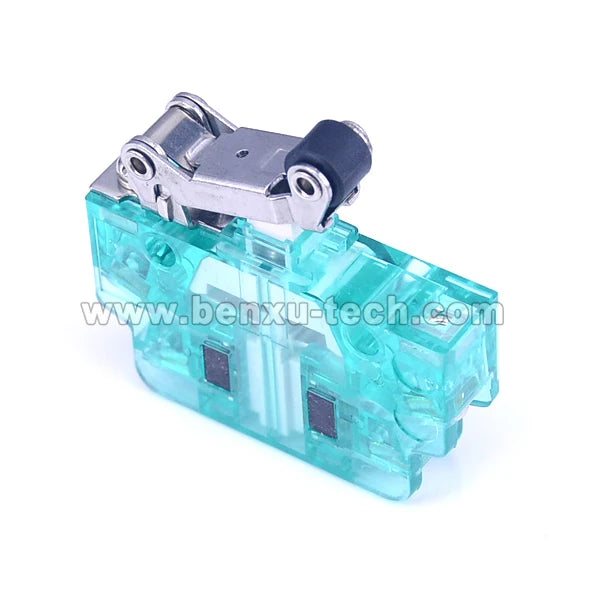

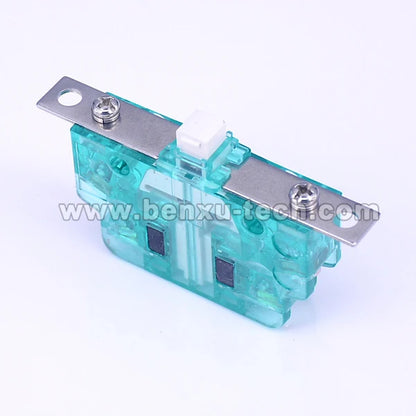

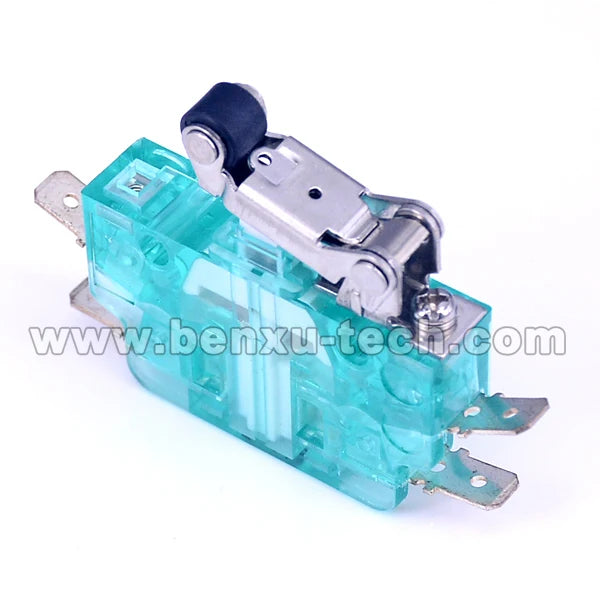

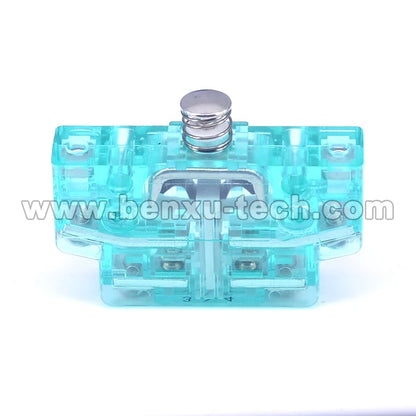

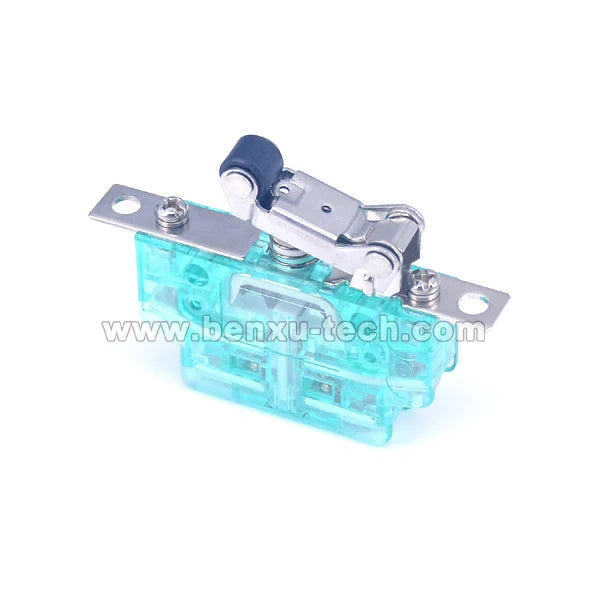

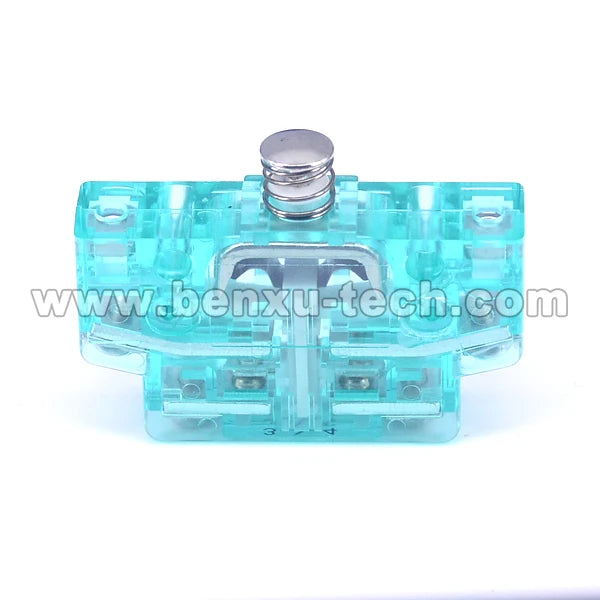

Model Number: BX-S800/S826/S847/S804b
Origin: Mainland China

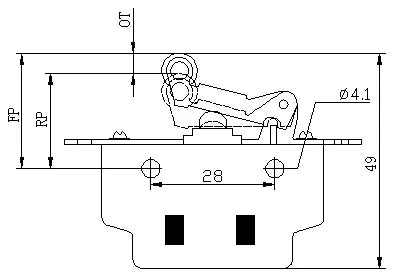

Performance characteristic: OT-3.5N FP-1.9N RP-0.8N
Protection Class: IP65
Rated voltage current: AC-12 Uec380V/16A DC-12 Ue110V/10A
Shock: lasting long:max 4000m/Sec2 Malfunction:300m/Sec2
Switch Type: MICRO SWITCH
The lifetime: Machinery:more than 1 million times Electric: More than 200,000 times
Warranty: 12 months
Withstand voltage power frequency: Rated withstand voltage 4KV
